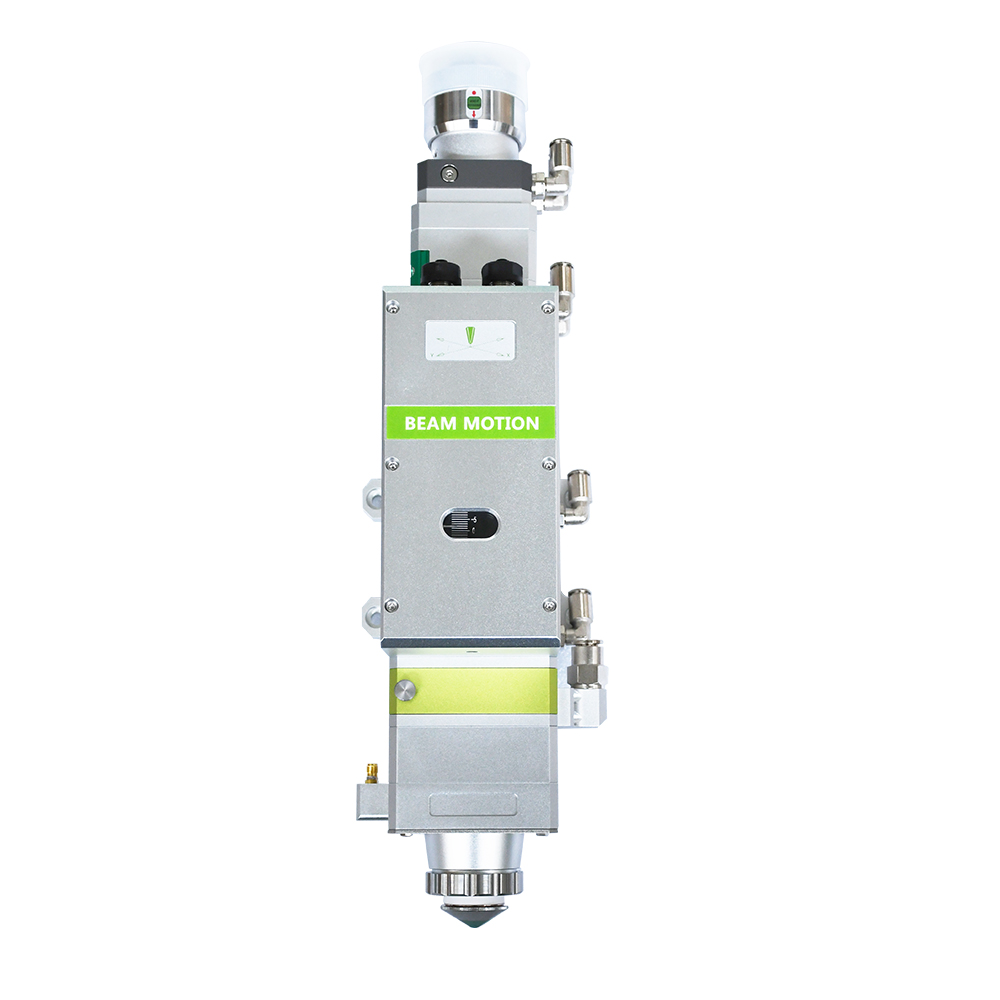

BM 110 Raytools Laser Cutting Head
BM 110 Raytools Laser Cutting Head
Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly.
Added cover glasses to protect the collimation lens effectively.
Auto focus to reduce human intervention. Auto focus range is -12~+10mm and focusing accuracy is 0.05mm.
Various fiber interfaces like QBH, QD to work with different prevailing lasers.
Range | -12mm ~ +10mm |
Velocity | ≤170mm/s |
Acceleration | ≤10m/s2 |
Accuracy | 0.05mm |
Clear Aperture | 28mm |
Nozzle Styles | Single，Double，Custom |
Diameter of Nozzle Tip | 0.8mm，1.0mm，1.2mm，1.5mm，2.0mm，2.5mm，3.0mm，3.5mm，4.0mm，4.5mm，5.0mm |
Assist Gas Pressure | ≤28bar |
Weight | ~5.0kg |
