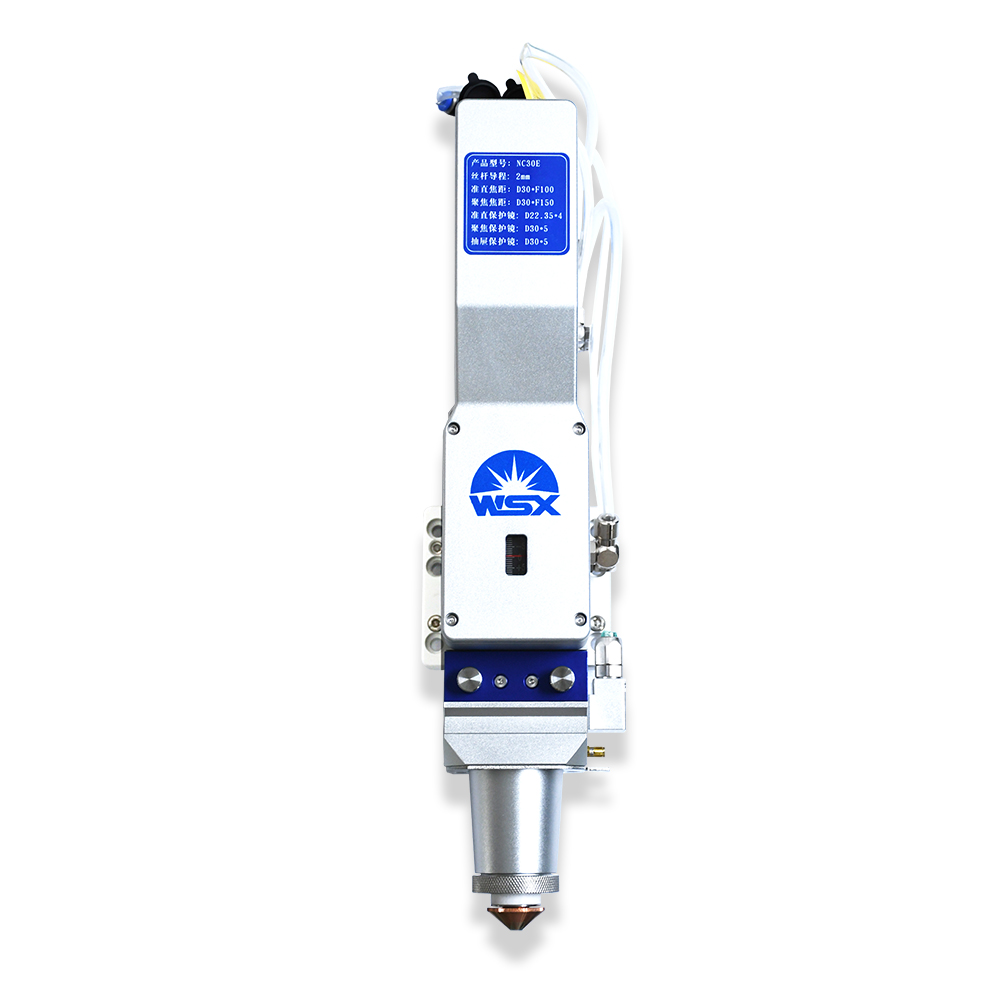

NC 30E 1000W-3000W Fiber Laser Cutting Head

Laser Machine Parts > Laser Cutting Head > NC 30E 1000W-3000W Fiber Laser Cutting Head

NC 30E 1000W-3000W Fiber Laser Cutting Head

655dac689af2f.jpg1.This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.

2.The internal structure of the laser head is completely sealed to avoid dust contamination on the optical

3.This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and

conveniently.

4.The protective window is installed in cartridge, and is convenient to replace.

5.Can be equipped with various kinds of laser source with QBH.

Model

NC30E

Auto focus Range

+8~-8mm

Fiber interface

QBH/QD

Collimator length

100mm

Focusing length

125mm/150mm/190mm

Collimation side

22.35*4mm

Focusing side

30*5mm

Assist gas pressure

<25bar

Weight

~5.1KG
